Precision ring

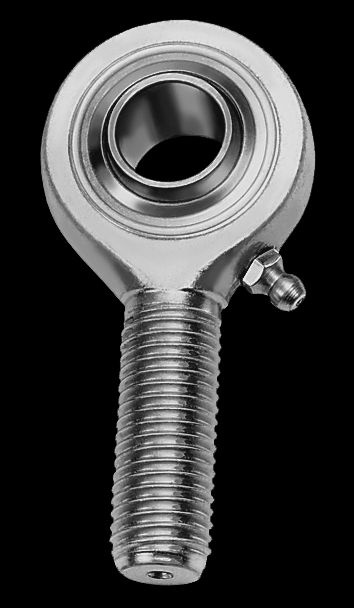

Material: Casing drop-forged steel, tempered. Version: Galvanized. Internal clearance 15 - 40 µm. Rod ends are primarily used where movement processes are transmitted and there is no exact alignment. Version with internal thread: The hardened ball bearing is long-term greased and sealed with cover washers. The connection dimensions comply with DIN 648 Form Series KA. Version with external thread: The hardened ball bearing is long-term greased and sealed with cover washers. The connection dimensions comply with DIN 648 Form Series KA.

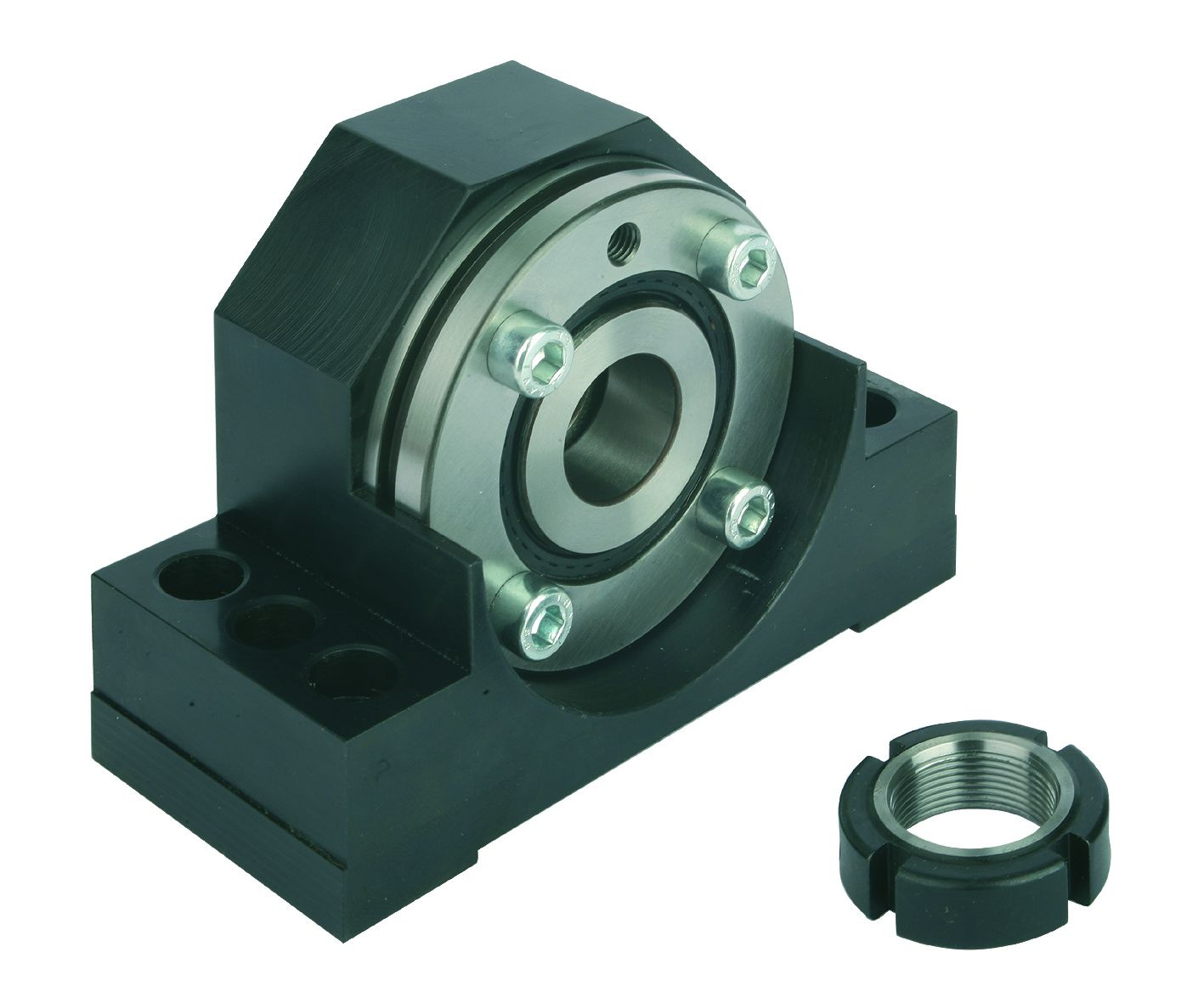

Material: Housing steel. Version: Housing black oxidised. Note: The axis height of the spindle bearings is matched to the floating bearing units 24074 and the housings for flange nuts 24070. The housings may be screwed on from above or below and pinned with two taper pins or cylindrical pins. Reference faces on both sides ease unit alignment. Ready to install fixed bearing units with double row preloaded high-accuracy bearings and a 60° thrust angle. They accept both radial and axial forces from both directions and, due to preloading provide for highest rigidity, concentricity, precise tool positioning and repeatability.

🛠️ FERG Thread Guides – Secure and Precise Guidance for Manual Threading At FERG, S.L., we manufacture high-quality tools for machining processes, including our thread guides: essential accessories for safe, precise, and effective manual threading. FERG thread guides are designed to guide the tap perpendicular to the work surface, preventing misalignment errors and ensuring professional-quality threads. 📏 What is a Thread Guide? A thread guide is an accessory that acts as a guide for manual taps, especially useful when a threading machine is not available or when threading operations are performed directly on the workpiece. Its function is to maintain the exact direction of the tap during the cutting process, which helps extend tool life and achieve cleaner, more functional threads. 🧰 Technical Features of FERG Thread Guides Robust construction in treated and precision-machined steel Inner diameters adapted to standard manual taps Cylindrical body with flat support for stability during use Available in multiple sizes: from M3 to M24 (and larger on request) Designed to work with sets of taper, intermediate, and bottom taps Compatible with conventional tap holders and hand ratchets ➡️ For more information or a no-obligation quote: 🌐 https://ferg.es/contacto 📧 info@ferg.es
